Detail

Section

XPA
Length

1382 mm
Type

Cogged Wedge Belt
Manufacturer

GATES QUADPOWER 4

Description

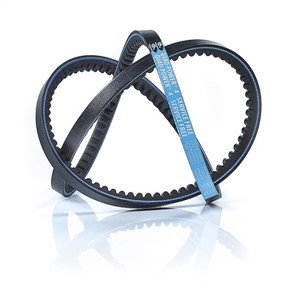

QUAD-POWER 4, THE FIRST 100% TROUBLE & SERVICE-FREE V-BELT

By using innovative minimal-stretch cord technology, Gates has designed the industrys first bandless zero-maintenance V-belt. Unlike conventional belts, the Quad-Power 4 V-belt does not suffer from severe tension decay in the first hours after installation. So, no run-in period nor any re-tensioning are required.

No re-tensioning means no machine or production downtime. The new Quad-Power 4 service-free V-belts reduce downtime costs for maintenance and plant engineers.

BENEFITS

Service-free V-belt

Widest temperature range in the market: from -50C to +130C

Match system: all sizes meet Gates UNISET tolerances, they can be installed without matching

Energy efficiencies up to 98%

Latest EPDM rubber technology

Halogen-free belt

Perfect fit on standard ISO/DIN/RMA V-pulleys

Manufactured to DIN7753, ISO4184, RMA IP-22

Static conductive to ISO1813 / ATEX compliant

RoHS and REACH compliant SECTIONS AND SIZE RANGE

Ground-breaking technology

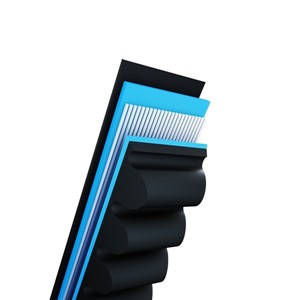

Gates Quad-Power 4 V-belts are constructed with the most advanced technology available today. Our new generation of EPDM belts are designed for longer service life eliminating costly downtime for re-tensioning, repair and replacement.

Minimal-elongation polyester tensile cords for stable tension over the entire lifetime

Blue adhesion layer for strong bonding of the tensile cords and the rubber for reduced bending stress

New generation EPDM rubber for a long service life and a wear-resistant belt under extreme temperatures
